bindingInfo.setGroupTotal(field, header, Boolean)

Specifies whether the subtotal for a given parent group should be displayed. When true, this is equivalent to selecting ‘Show’ in the ‘Summarize’ menu of the Crosstab Editor.

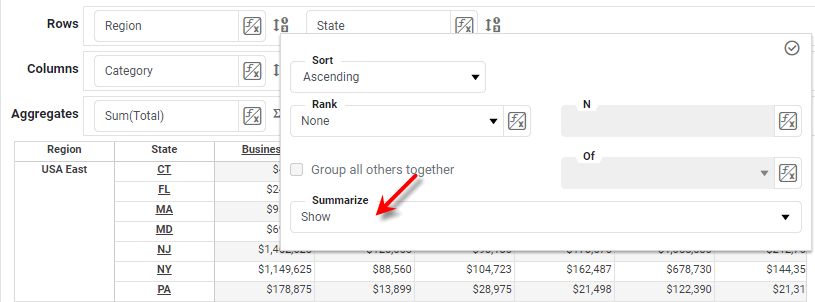

crosstab editor showing Summarize Show option for group subtotals

Parameters

field: String: Name of grouped column to total
header: StyleConstant.ROW_HEADER or StyleConstant.COLUMN_HEADER
Boolean: true: display group total
false: suppress group total (default)

Example

Crosstab1.query = 'Sales';
Crosstab1.bindingInfo.rowFields = ['Region','State'];
Crosstab1.bindingInfo.colFields = ['Category'];
Crosstab1.bindingInfo.measureFields = ['Total'];
Crosstab1.bindingInfo.setFormula('Total', StyleConstant.SUM_FORMULA);
Crosstab1.bindingInfo.setGroupTotal('Region',StyleConstant.ROW_HEADER,true);

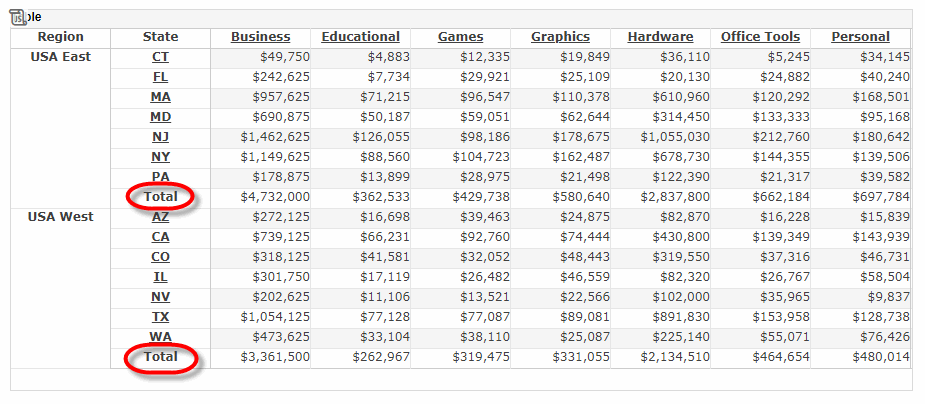

crosstab with Region row subtotals displayed for each region group

Either syntax below can be used in component script:

bindingInfo.setGroupTotal             // unqualified
Crosstab1.bindingInfo.setGroupTotal   // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
