composite

Common Properties for properties shared with other components.

Specifies whether the Range Slider displays a single value or composite value. This is equivalent to selecting ‘Single Value’ or ‘Composite Value’ in the Data tab of the component ‘Properties’ dialog box.

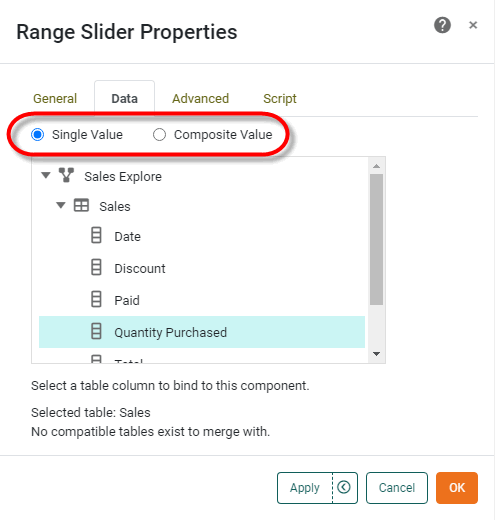

range slider properties Data tab showing single value vs composite value option

Type

Boolean

Example

RangeSlider1.query = 'Sales';
RangeSlider1.fields = ['Region','Category'];
RangeSlider1.composite = true;
RangeSlider1.rangeType = StyleConstant.STRING;

Either syntax below can be used in component script:

composite                  // unqualified
RangeSlider1.composite     // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
