Create a Physical View

Physical views can only be created for relational databases. (See JDBC or Connect to a Specific Data Source for information on how to configure a relational database data source.)

If you see the ‘Create Visualization’ dialog box, press the ‘Close’ button Close and then proceed with the steps below.

200

To create a physical view, follow the steps below:

  1. Press the top ‘Data’ button Data.

    press Data button

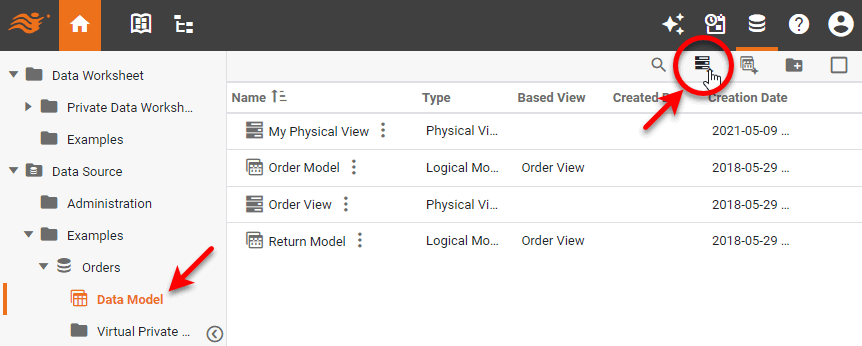

  2. In the ‘Navigation Tree’ in the left panel, expand the ‘Data Sources’ folder. Locate the relational database data source for which you want to add a physical view. Select the ‘Data Model’ node, and press the ‘New Physical View’ button New Physical View.

    press New Physical View button

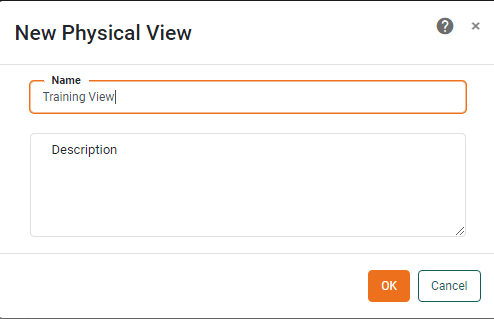

  3. Provide a name for the physical view and press ‘OK’.

    name physical view and press OK

  4. Add tables to the physical view. Follow the steps below:

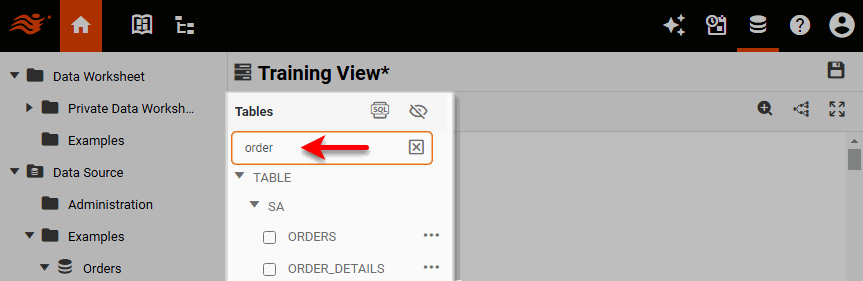

    1. Optional: To filter the list of available tables, use the ‘Search’ box to enter the name (or partial name) of the tables to which you want to restrict the listing.

      filter tables using Search box

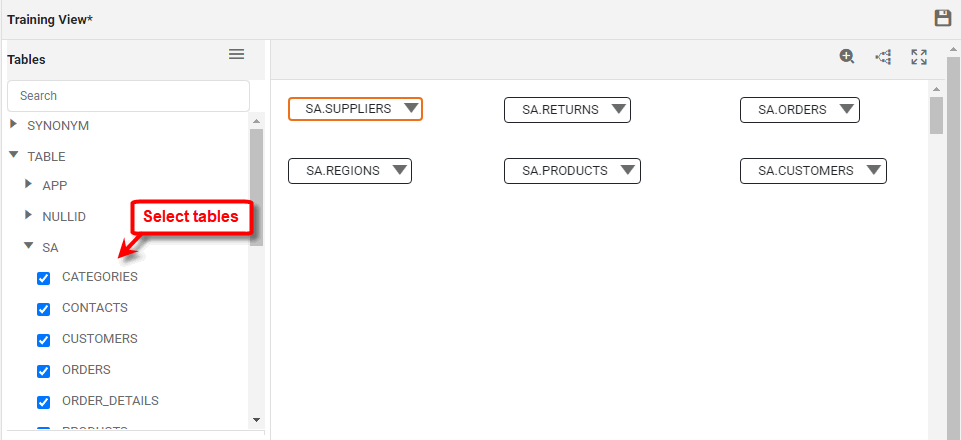

    2. Click to select the tables to add to the physical view. (Add all the tables from which you want the data model to be able to retrieve data.)

      select tables to add

    3. Optional: To add a custom table based on a SQL query, see Add Inline SQL in Edit a Physical View.

    4. Optional: To hide the tables you have not selected, press the ‘Only Show Selected Tables’ button Only Show Selected Tables at the top of the ‘Tables’ panel.

    5. To display the columns within a table, press the ‘Show Columns’ button Show Columns.

  5. Add joins to create relations between the tables. To add an individual join between tables, follow the steps below. To automatically add joins between many tables, see Automatically Create Joins in Edit a Physical View.

    Physical views are susceptible to query traps that can cause unexpected results. See Identify Query Traps for more information.

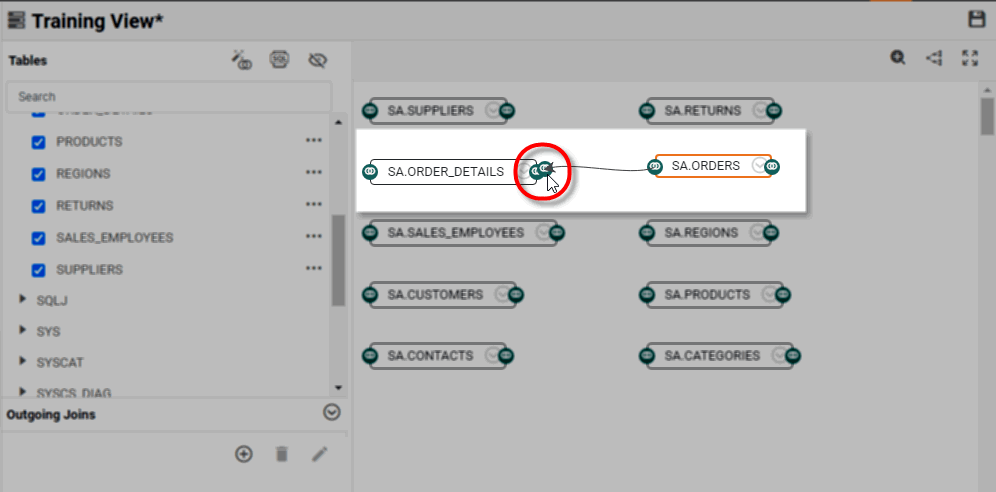

    1. Click the first table in the left panel that you want to join. Drag the join handle join handle from the first table onto the of the second table. This opens the Join Editor.

      drag join handle to open Join Editor

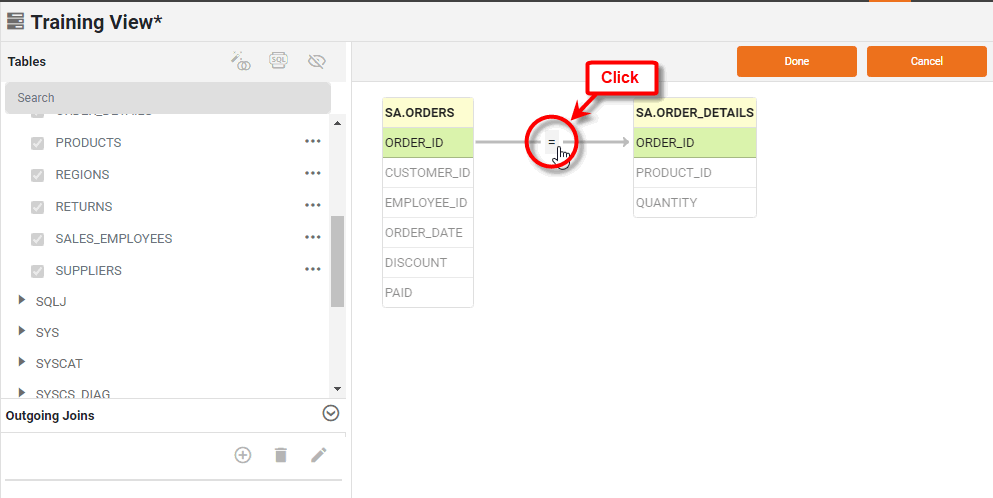

      If a join between the tables already exists, click on the join link to open the ‘Edit Join’ dialog box.

      click join link to open Edit Join

      The ‘Edit Join’ dialog box allows you to modify the join operator (inner/equal, outer, or inequality), and set the cardinality, merging rule, and weak join. See Modify Join Properties for more information about these join settings.

      modify join settings in Edit Join dialog

    2. Press OK to close the ‘Edit Join’ dialog box.

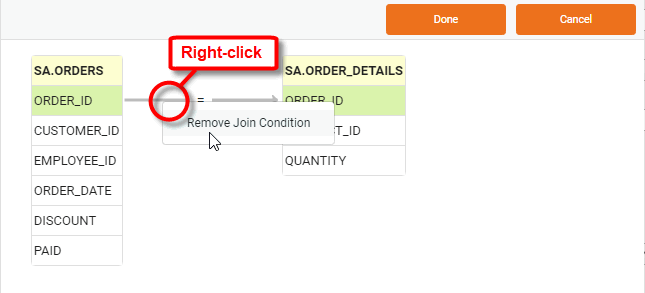

    3. To remove an existing join, right-click on the join link, and select ‘Remove Join Condition’.

      right-click join link and select Remove Join Condition

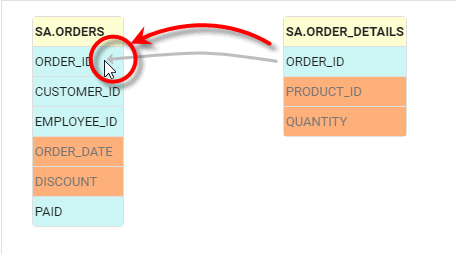

    4. To create a new join, simply drag the desired join field from one table into the other table. Repeat to create any additional joins.

      drag join field to create new join

    5. Press Done to exit the Join Editor.

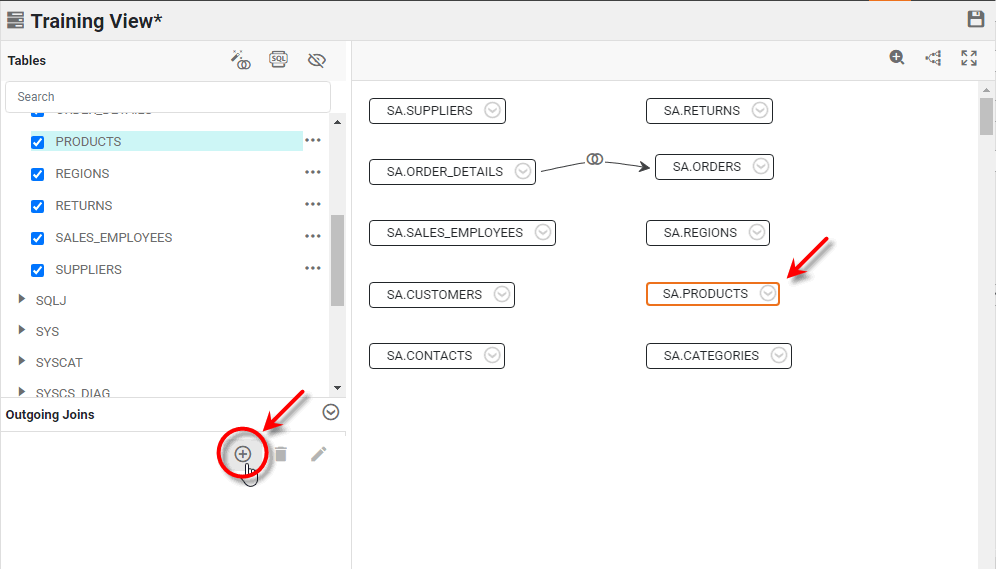

      You can also add a join by selecting a table, and pressing the ‘Add a join’ button Add a join.

      select table and press Add a join

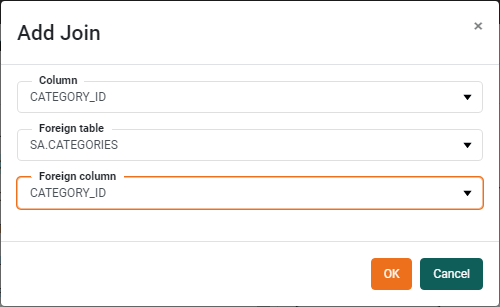

      This opens the ‘Add Join’ dialog box. Choose the join column within the selected table (‘Column’) and the ‘Foreign column’ within a desired ‘Foreign table’, and press OK.

      choose join columns and press OK

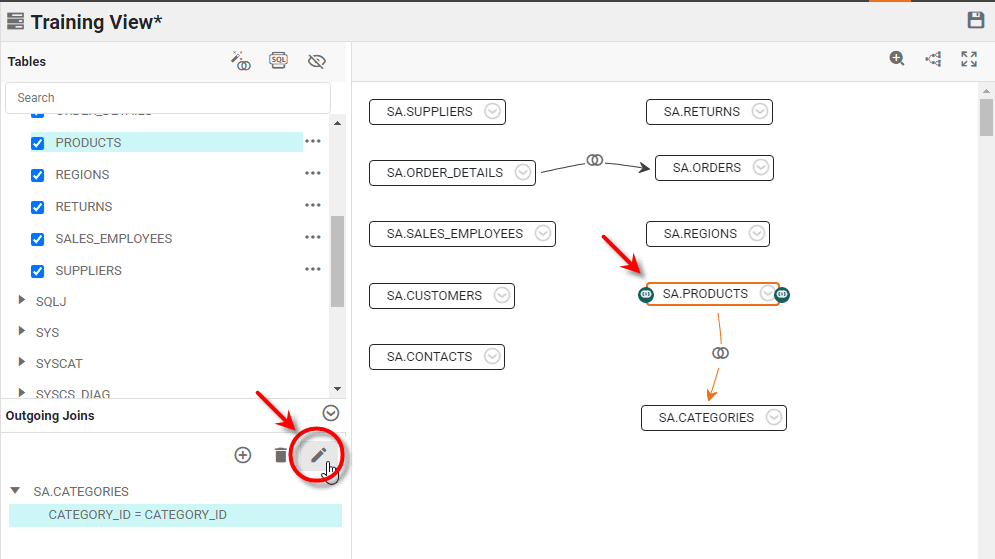

  6. To edit a join, select the table from which the join is an outgoing join, and press the ‘Edit a join’ button Edit a join. This will open the ‘Edit Join’ dialog box (see above), where you can modify the join.

    press Edit a join button

  7. To delete a join, select the table from which the join is an outgoing join, and press the ‘Remove the selected join(s)’ button Remove the selected join(s).

  8. Repeat the above steps to join all tables in the physical view. (To automatically add joins between many tables, see Automatically Create Joins in Edit a Physical View.)

  9. Press the ‘Save’ button Save to save the physical view.
