Pivot Data

To create a desired chart or table in a Dashboard, you may sometimes need to “pivot” or “unpivot” the data in one of the following ways:

  • Convert multiple measures into a single measure by creating a new dimension. (The new dimension uses the measure labels as dimension values.)

  • Convert a single measure into multiple measures by using existing dimension values. (The new measures use the dimension values as the measure labels.)

Change Multiple Measures into a Single Measure

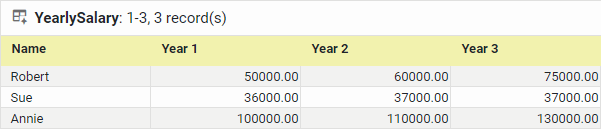

Consider the data block below, which contains one dimension (‘Name’) and three salary measures (‘Year 1’, ‘Year 2’, ‘Year 3’).

data block with one Name dimension and three year salary measures

In certain cases you may want to convert multiple measures into a single measure by using the measure labels (‘Year 1’, ‘Year 2’, ‘Year 3’) as the values of a new dimension. To do this, follow the steps below:

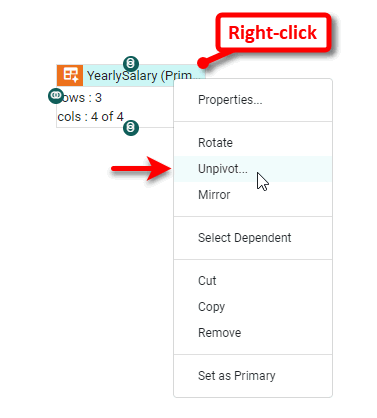

  1. Right click the data block thumbnail, and select ‘Unpivot’. Note: You can also access menu options from the ‘More’ button (More) in the mini-toolbar.

    right-click data block and select Unpivot from context menu

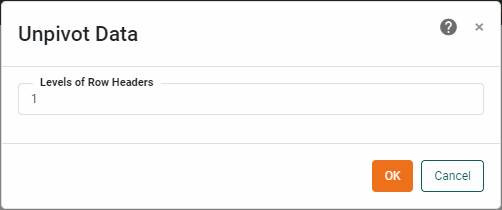

  2. Enter a value for ‘Levels of Row Headers’. This is the number of columns (dimensions) to the left of the first measure in the data block. For the example above, there is just one column (‘Name’) to the left of the first measure.

    To change the level of row headers at a later time, right-click the data block, and select ‘Edit Pivot Level’ from the context menu.

    enter number of row header levels in the Unpivot Data dialog

  3. Press OK. This creates a new data block called ‘Query1’.

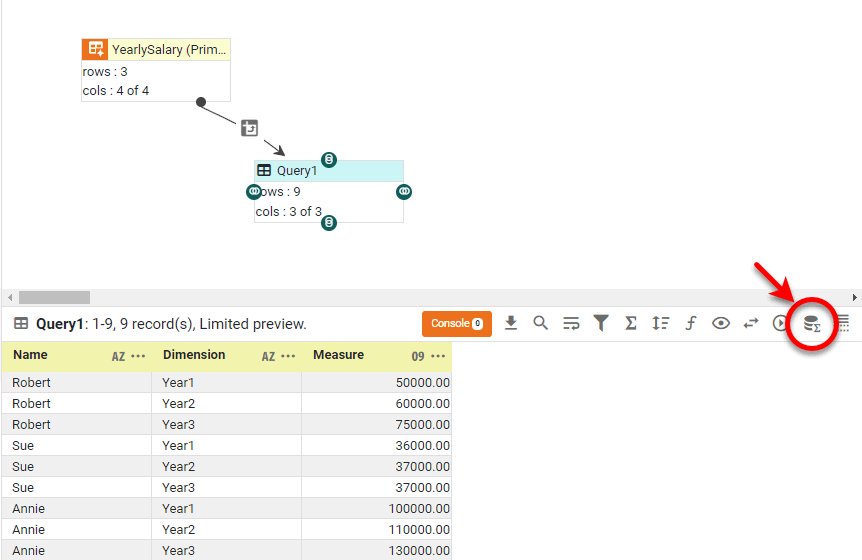

  4. Preview the new data block (see Preview Data) to verify that the labels of the three measures have been used to create a new dimension, and the measure values have been combined into a single measure called ‘Measure’.

    unpivoted data block showing measure labels as dimension values and single Measure column

  5. Change the column names as desired. (See Modify a Column for information on how to modify columns properties.)

Change a Single Measure into Multiple Measures

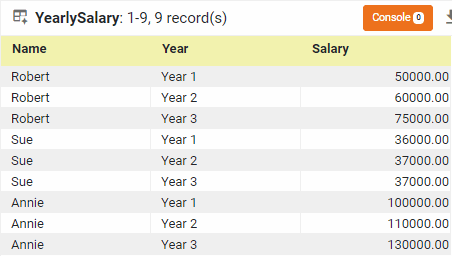

Consider the data block below, which contains two dimensions (‘Name’ and ‘Year’) and one measure (‘Salary’).

data block with Name and Year dimensions and single Salary measure

In certain cases you may want to convert a single measure into multiple measures by using the dimension values (‘Year 1’, ‘Year 2’, ‘Year 3’) as the labels of the new measures. You can do this by converting the table into a Crosstab. (See Group and Aggregate Data for full information about Crosstabs.)

Follow the steps below:

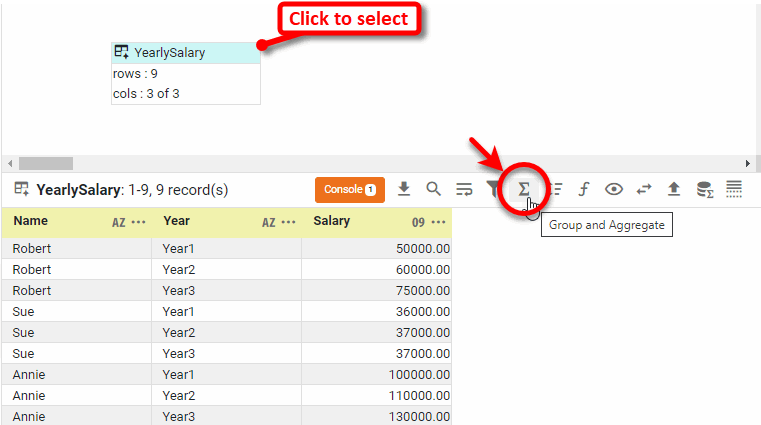

  1. Click the data block thumbnail to select it, and press the ‘Group and Aggregate’ button Group and Aggregate the toolbar of the bottom panel.

    press Group and Aggregate button in the bottom panel toolbar

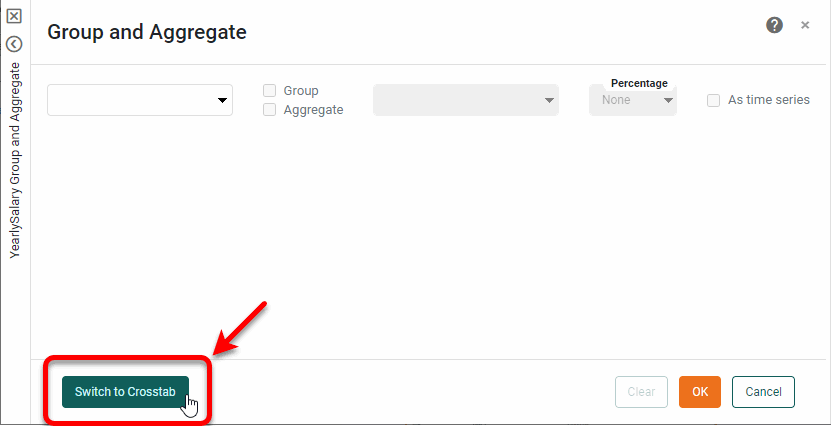

  2. In the ‘Group and Aggregate’ panel, press Switch to Crosstab.

    press Switch to Crosstab button in the Group and Aggregate panel

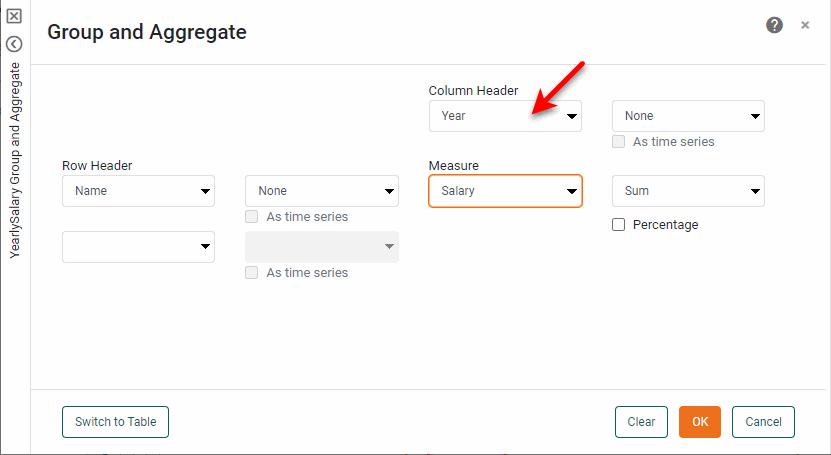

  3. Select as the ‘Row Header’ the dimensions that you want to retain as dimensions. Select as ‘Column Header’ the dimension whose values you want to use as the new measure labels. Select as ‘Measure’ the measure that you want to convert into multiple measures.

    crosstab panel with Name row header Year column header and Salary measure configured

  4. Press OK.

  5. Preview the data block (see Preview Data) to verify that the values of the ‘Year’ dimension have been used to create three new measures (‘Year 1’, ‘Year 2’, ‘Year 3’).

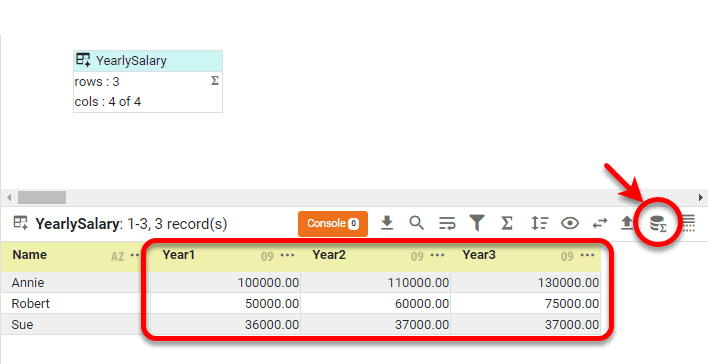

    crosstab data block showing Year dimension values as separate measure columns

  6. Change the column names as desired. (See Modify a Column for information on how to modify columns properties.)
