AxisSpec.setLineColor(value)

Specifies the color of the axis lines. The corresponding “getter” function is getLineColor().

Parameter

Example

Chart Component Script

dataset = [["State","Quantity"],["NJ",20000],["NY",30000]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var qscale = new LinearScale("Quantity");
var cscale = new CategoricalScale("State");
var aspec1 = new AxisSpec(); (2)
var aspec2 = new AxisSpec(); (2)
aspec1.setLineColor(java.awt.Color(0xff0000)); (3)
aspec2.setLineColor(java.awt.Color(0x00ff00)); (3)
qscale.setAxisSpec(aspec1);
cscale.setAxisSpec(aspec2);
graph.setScale("Quantity", qscale);
graph.setScale("State", cscale);
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create two `AxisSpec` objects.
3	Use `setLineColor` to assign the color to both axes.

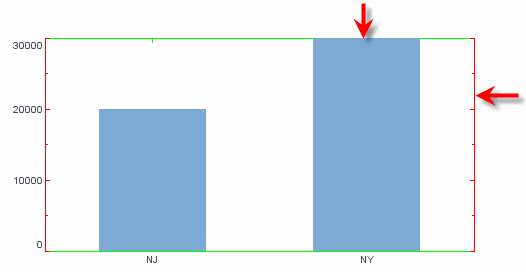

TextFrame2setLineColor

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

To change the property on a Chart that was previously created with the Chart Editor, use EGraph.getCoordinate() ①, RectCoord.getYScale() ②, and Scale.getAxisSpec() ③ to obtain a handle to the desired Coordinate object, Scale object, and so on. For example:

var coord = graph.getCoordinate(); (1)
var yscale = coord.getYScale(); (2)
var yspec = yscale.getAxisSpec(); (3)
var xscale = coord.getXScale();
var xspec = xscale.getAxisSpec();
// Compact syntax: var xspec = graph.getCoordinate().getXScale().getAxisSpec();
// Compact syntax: var yspec = graph.getCoordinate().getYScale().getAxisSpec();

xspec.setLineColor(java.awt.Color(0xff0000));
yspec.setLineColor(java.awt.Color(0x00ff00));
