LegendSpec.setTitle(value)

Specifies the legend title. The corresponding “getter” function is getTitle().

Parameter

value: String containing the title text

Example

Chart Component Script

dataset = [["State", "Quantity"], ["NJ",200], ["NY",300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var frame = new CategoricalColorFrame();
frame.setField("State");
var spec = new LegendSpec(); (2)
spec.setTitle('Legend1'); (3)
frame.setLegendSpec(spec); (4)
elem.setColorFrame(frame);
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the LegendSpec object.
3	Use `setTitle` to assign the title to the `LegendSpec`.
4	Use VisualFrame.setLegendSpec(spec) to assign the `LegendSpec` to the `ColorFrame`.

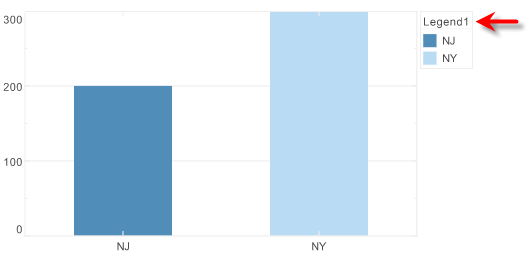

LegendSpecsetTitle

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

To change the property on a Chart that was previously created with the Chart Editor, use “getter” methods such as EGraph.getElement(index) ①, GraphElement.getColorFrame() ②, and VisualFrame.getLegendSpec() ③ to obtain a handle to the desired GraphElement, ColorFrame, and LegendSpec. For example:

var elem = graph.getElement(0); (1)
var frame = elem.getColorFrame(); (2)
var spec = frame.getLegendSpec(); (3)
// Compact syntax: var spec = graph.getElement(0).getColorFrame().getLegendSpec();

spec.setTitle('Legend1');
