bindingInfo.colorFrame

Modify Chart Element to apply a ColorFrame outside of the data binding.
bindingInfo.colors to set a static color for a particular measure.
bindingInfo.setColorField(col, type) for information on binding a color field.

Specifies the aesthetic color treatment for the chart elements. A ColorFrame can color-code chart elements by value, or simply specify a static color scheme. The default for dimensions is CategoricalColorFrame, and the default for measures is GradientColorFrame.

Type

ColorFrame

Example

Chart1.bindingInfo.setColorField("Total",Chart.NUMBER);
Chart1.bindingInfo.colorFrame = new HeatColorFrame;

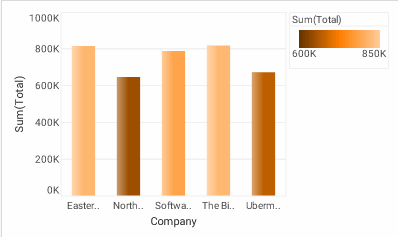

HeatColorFrame

Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
