bindingInfo.setTopN(field, header, number)

Sets the number of row or column groups to preserve in the ranking. This is equivalent to setting the number ‘N’ of ranking groups for the ‘Rank’ property of the Crosstab Editor.

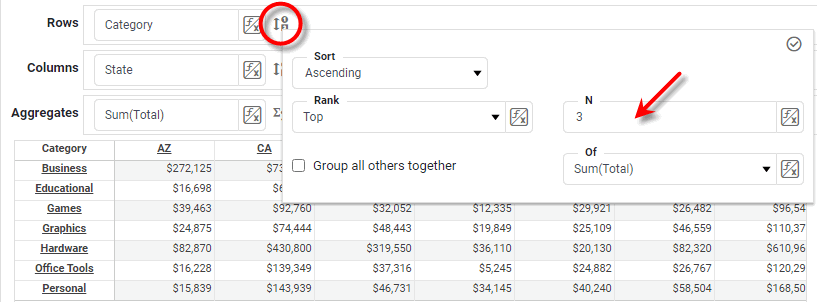

crosstab editor showing Rank N option for filtering top groups

This function should always be used in conjunction with bindingInfo.setTopNSummaryCol(field, header, measure) and bindingInfo.setTopNReverse(field, header, Boolean).

Parameters

field: String: Name of a column to rank
header: StyleConstant.ROW_HEADER or StyleConstant.COLUMN_HEADER
number: Integer: Number of groups to select

Example

Crosstab1.query = 'Sales';
Crosstab1.bindingInfo.rowFields = ['Name'];
Crosstab1.bindingInfo.colFields = ['Region'];
Crosstab1.bindingInfo.measureFields = ['Total'];
Crosstab1.bindingInfo.setFormula('Total', StyleConstant.SUM_FORMULA);
Crosstab1.bindingInfo.showColumnTotal = true;
Crosstab1.bindingInfo.setTopN('Name',StyleConstant.ROW_HEADER,3);
Crosstab1.bindingInfo.setTopNSummaryCol('Name',StyleConstant.ROW_HEADER,'Sum(Total)');
Crosstab1.bindingInfo.setTopNReverse('Name',StyleConstant.ROW_HEADER,false);

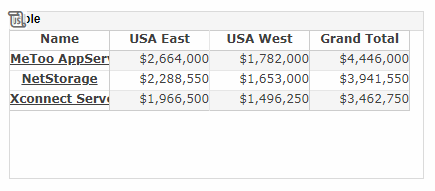

crosstab showing top 3 names by Sum of Total with column totals

Either syntax below can be used in component script:

bindingInfo.setTopN             // unqualified
Crosstab1.bindingInfo.setTopN   // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
