addConfidenceIntervalTarget(measure, colors, values, options)

Draws a set of horizontal or vertical confidence intervals on the chart. See Add a Target Line/Curve Fit for more information about target lines.

Individual target lines are accessed in script as GraphForm objects. To remove a specific target line, use graph.removeForm(index). Indexing for all GraphForm objects begins at 0 and proceeds in the order that objects were added to the chart. To remove all target lines, use clearTargets().

Parameter

measure

Name of measure on which to draw confidence intervals

colors

Color (see valueColor) or array of colors to fill area of confidence intervals

values

Confidence level as a percentage (e.g., '99' for 99% confidence interval)

options

Object literal containing name-value pairs of options (see Options below, e.g., {fillAbove:0xff0000, fillBelow:0x00ff00})

Options

fillAbove

Color (see valueColor) to fill the region above the upper confidence line

fillBelow

Color (see valueColor) to fill the region below the lower confidence line

label

String to label the confidence line(s). The following codes can be inserted:

{0}: Target value
{1}: Target formula
{2}: Field name

The code can be followed by a format type and format string, for example, {0,number,$#,##0}. See Add Data Format for more information about formatting.

lineColor

Color (see valueColor) to apply to all confidence lines

lineStyle

The line style (a Line Style constant) to apply to all confidence lines

labelFont

The font description (e.g., 'Lucida Sans Unicode-BOLD-14') to apply to all line labels

labelColor

The color (see valueColor) to apply to all line labels

Example

// The 'options' object is broken into several lines for clarity:
var options = {fillAbove:[225,225,225],fillBelow:[225,225,225], \
label:['{1}: {0,number,$#,##0}','{1}: {0,number,$#,##0}'], \
lineColor:'red',lineStyle:Chart.THICK_LINE,labelFont:'Lucida Sans Unicode-BOLD-11',labelColor:'black'};

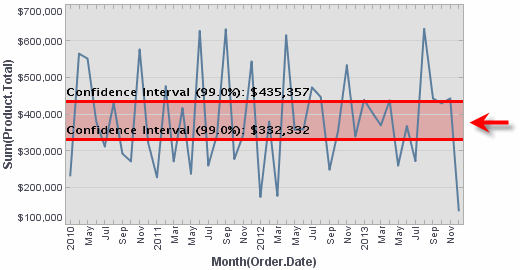

Chart1.addConfidenceIntervalTarget('Sum(Product:Total)',0xDDAAAA,99,options);

PlotAddTargetCI

Either syntax below can be used in component script:

addConfidenceIntervalTarget         // unqualified
Chart1.addConfidenceIntervalTarget  // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
