AxisSpec.setTextSpec(spec)

Controls the appearance of axis text. The corresponding “getter” function is AxisSpec.getTextSpec().

Parameter

frame: A TextSpec object

Example

Chart Component Script

dataset = [["State", "Quantity"], ["NJ", 200], ["NY", 300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var qscale = new LinearScale("Quantity");
var aspec = new AxisSpec(); (2)
var textspec = new TextSpec(); (3)
textspec.setColor(java.awt.Color(0xff0000));
aspec.setTextSpec(textspec); (4)
qscale.setAxisSpec(aspec);
graph.setScale("Quantity", qscale);
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the `AxisSpec` object.
3	Create the `TextSpec` object.
4	Use `setTextSpec` to assign the `TextSpec` to the axis.

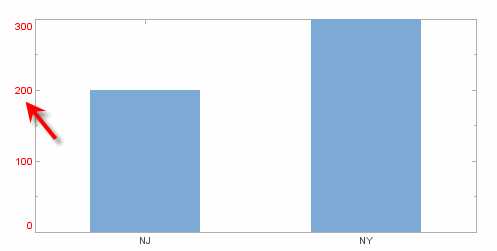

AxisSpecsetTextSpec

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

To change the property on a Chart that was previously created with the Chart Editor, use EGraph.getCoordinate() ①, RectCoord.getYScale() ②, and Scale.getAxisSpec() ③ to obtain a handle to the desired Coordinate object, Scale object, and so on. For example:

var coord = graph.getCoordinate(); (1)
var scale = coord.getYScale(); (2)
var spec = scale.getAxisSpec(); (3)
// Compact syntax: var spec = graph.getCoordinate().getYScale().getAxisSpec();

var textspec = new TextSpec();
textspec.setColor(java.awt.Color(0xff0000));
spec.setTextSpec(textspec);
