rangeType

Common Properties for properties shared with other components.
Range Slider Properties for more information on user selection editing.

Specifies the display mode for the Range Slider. This is equivalent to selecting a data type in the ‘Options’ panel of the Advanced tab in the ‘Properties’ dialog box.

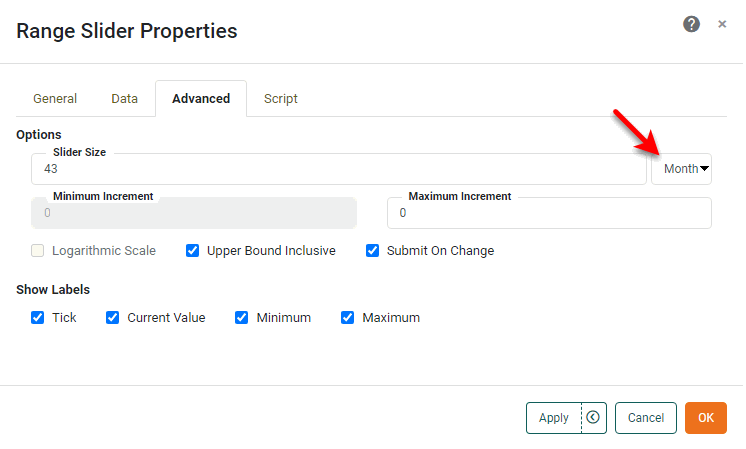

range slider Advanced tab showing range type data type selection

Type

Style Constant object: StyleConstant.NUMBER
StyleConstant.YEAR
StyleConstant.MONTH
StyleConstant.DAY

Example

Single-value Range Slider

RangeSlider1.composite = false;
RangeSlider1.query = 'Sales';
RangeSlider1.fields = ['Date'];
RangeSlider1.rangeType = StyleConstant.MONTH;

Either syntax below can be used in component script:

rangeType                  // unqualified
RangeSlider1.rangeType     // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
