Scatter Matrix Chart

If you are new to charting, see the following sections first:

Configure Your Data…​

The data source for the chart (data block or data model) should represent dimensions and measures as independent columns or fields, as shown below. See Prepare Your Data for information on how to manipulate your data, if it is not currently in this form. (Note: A properly designed data model will already have the correct structure.)

dataStructureCharts

In some cases (e.g., Pie Chart), you may want your data to provide just a single measure. In other cases (e.g., Line Chart), you may want the data to supply multiple measures. If the data does not provide the correct number of measures, you may be able to alter the number of measures to suit the needs of the chart by “pivoting” or “unpivoting” the data. See Pivot Data in Prepare Your Data for more information about this procedure.

Open a Chart for Editing…​
Watch Video: Create a Chart (Open the Chart Editor)

This video might show an earlier version of the feature or operation that differs in minor ways from the current version.

Follow the steps below to get started with a new Chart. See Basic Charting Steps for more details.

  1. If necessary, create a new Dashboard. (See Create a New Dashboard.)

  2. From the Toolbox panel, drag a Chart component into the Dashboard.

    addingChart

  3. Resize the Chart as desired by dragging the handles.

    resizeChartHandle 1

  4. Press the ’Edit’ button in the center of the Chart or press the ‘Edit’ button edit in the top-right corner.

    ChartEditButton

    This opens the same Visualization Recommender available for creating a new Dashboard. (See Create a New Dashboard.)

  5. To bypass the Recommender, press the ‘Full Editor’ button edit at the top right to open the Chart Editor.

    ChartEditorIntro

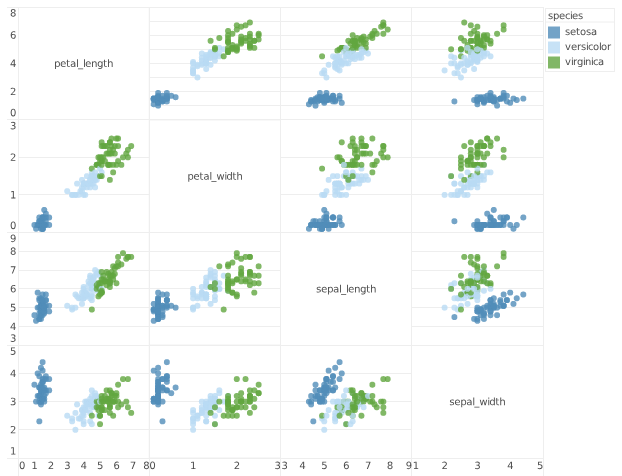

A scatter matrix is a grid of charts in which multiple measures are plotted against one another in a pair-wise manner.

What is a measure?

A measure is generally used for aggregation, for example summation, averaging, correlation, etc., within a Crosstab, Chart, Text component, or Gauge. Adding a measure to the ‘Y’ region in a chart displays the computed aggregates by using locations on the Y-axis. Adding a measure to the ‘X’ region displays the computed aggregates by using locations on the X-axis. You can also display aggregates by using color, shape, size, or label.

scatterMatrix1

To create a scatter matrix, simply add each measure into both the ‘X’ and ‘Y’ regions, and then place a dimension in the ‘Color’, ‘Shape’, ‘Size’, or ‘Text’ region.

What is a dimension?

A dimension is used to break-down the dataset into multiple groups, often within a Crosstab, Chart, or Selection List. Adding a dimension to the ‘X’ region of a Chart distinguishes the different dimension groups by location on the X-axis. Adding a dimension to the ‘Y’ region distinguishes the different dimension groups by location on the Y-axis. You can add multiple dimensions into the ‘X’ or ‘Y’ regions of a Chart, or into the ‘Rows’ or ‘Columns’ regions of a Crosstab, to create multiple grouping levels. You can also distinguish groups in a dimension by using color, shape, size, or label in a Chart.

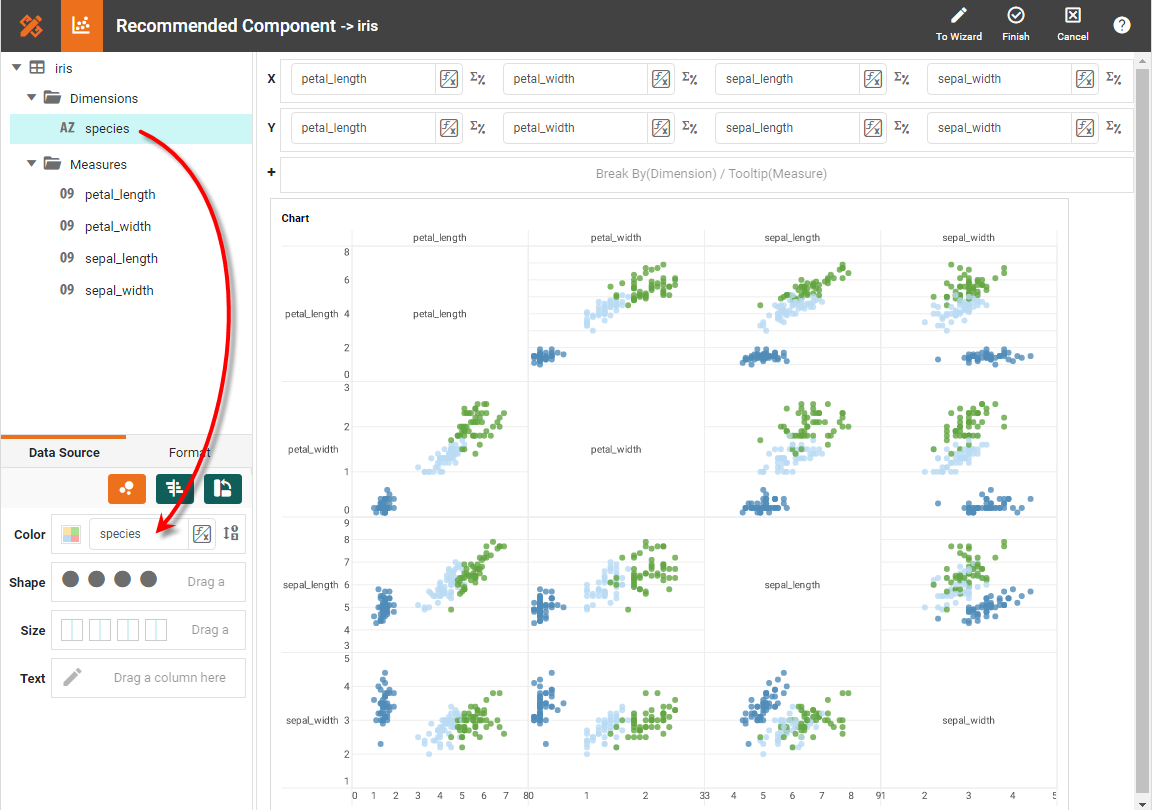

For example, in the chart below, each of the four measures appears in both the ‘X’ and ‘Y’ regions, and the dimension is bound in the ‘Color’ region.

scatterMatrix2

To hide an axis, right-click the axis and select ‘Hide Axis’ from the context menu. Note: You can also access menu options from the ‘More’ button (menu horizontal) in the mini-toolbar. See Axis Properties in Dashboard Reference for more information about axis settings.
