TextureFrame

The TextureFrame object contains the texture for visual chart objects. You can use a TextureFrame object to represent data dimensions with texture (texture coding), or to apply a fixed (static) texture pattern. To create a TextureFrame, use constructors such as GridTextureFrame or StaticTextureFrame.

Example 1

  1. Bind a Point Chart to the sample ‘All Sales’ Data Worksheet, with ‘Company’ (top 5) on the X-axis, and Sum(Total) on the Y-axis.

    The ‘All Sales’ Data Worksheet can be found in the Data Worksheet  Sample Queries folder. You may need to download the examples.zip file from GitHub into your environment. (This requires access to Enterprise Manager.) See Import and Export Assets for instructions on how to import.

  2. Add the following script to the Chart component. (See Add Component Script.)

    Chart Component Script
    var elem = graph.getElement(0); (1)
var frame = new StaticTextureFrame(); (2)
frame.setTexture(GTexture.PATTERN_5);
elem.setTextureFrame(frame); (3)
    1 Use EGraph.getElement(index) to get a handle to the PointElement.
    2 Create the StaticTextureFrame object.
    3 Use GraphElement.setTextureFrame(frame) to add the StaticTextureFrame to the PointElement.

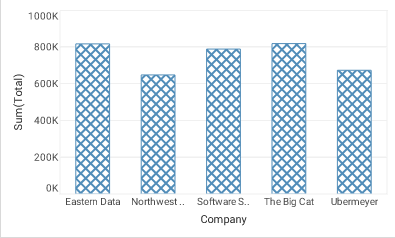

    StaticTextureFrame

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

Example 2

This example illustrates how to use bindingInfo properties to control the TextureFrame.

  1. Bind a Bar Chart to the sample ‘All Sales’ Data Worksheet, with ‘Company’ (top 5) on the X-axis, and Sum(Total) on the Y-axis.

    The ‘All Sales’ Data Worksheet can be found in the Data Worksheet  Sample Queries folder. You may need to download the examples.zip file from GitHub into your environment. (This requires access to Enterprise Manager.) See Import and Export Assets for instructions on how to import.

  2. Add the following script in the onRefresh handler. (See Add Dashboard Script.)

    onRefresh Script
    Chart1.bindingInfo.setShapeField("Total",Chart.NUMBER);
Chart1.bindingInfo.textureFrame = new LeftTiltTextureFrame;

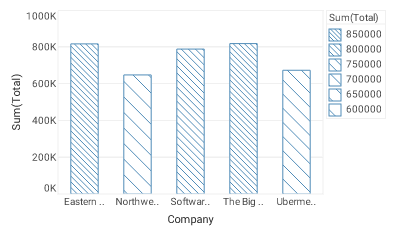

    LeftTiltTextureFrame

    Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
