TriangleShapeFrame.setFill(Boolean)

VisualFrame

Specifies whether the triangular elements should be filled. You can also set this using the bindingInfo.shapeFrame.fill property syntax in onRefresh script. See Example 2 below.

Parameter

Boolean: true: fill triangle
false: do not fill triangle

Example 1

Chart Component Script

dataset = [["State","Quantity","Total"], ["NJ",200,30], ["NY",300,15], ["PA",150,5]]; (1)
graph = new EGraph();
var elem = new PointElement("State", "Quantity");
var sizeframe = new StaticSizeFrame();
sizeframe.setSize(10);
var frame = new TriangleShapeFrame("Total"); (2)
frame.setFill(true); (3)
elem.setShapeFrame(frame); (4)
elem.setSizeFrame(sizeframe);
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the `TriangleShapeFrame` object.
3	Use `setFill` to draw filled shapes.
4	Use GraphElement.setShapeFrame(frame) to add the `TriangleShapeFrame` to the PointElement.

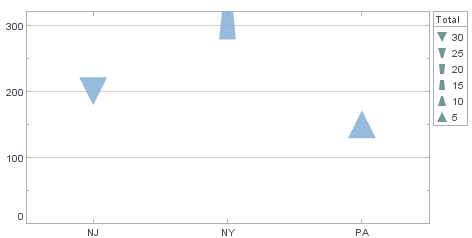

TriangleShapeFrame2setFill

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

Example 2

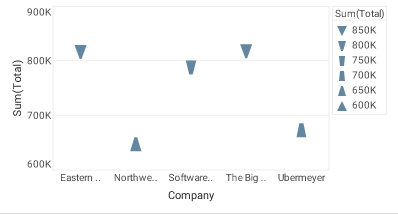

This example illustrates how to use bindingInfo properties to control the ShapeFrame.

Bind a Point Chart to the sample ‘All Sales’ Data Worksheet, with ‘Company’ (top 5) on the X-axis, and Sum(Total) on the Y-axis.

The ‘All Sales’ Data Worksheet can be found in the Sample Queries folder. You may need to download the examples.zip file from GitHub into your environment. (This requires access to Enterprise Manager.) See Import and Export Assets for instructions on how to import.

Add the following script in the onRefresh handler. (See Add Dashboard Script.)
onRefresh Script
```
Chart1.bindingInfo.setShapeField("Total",Chart.NUMBER);
Chart1.bindingInfo.shapeFrame = new TriangleShapeFrame;
Chart1.bindingInfo.shapeFrame.fill = true;
```
Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
