yBandSize

Specifies the width of the bands on a categorical or timescale Y-axis.

Type

integer

Number of category groups (for a categorical axis) or the number of date groups (for a timescale axis) to be spanned by each band

Example

Chart1.yBandSize = 3;

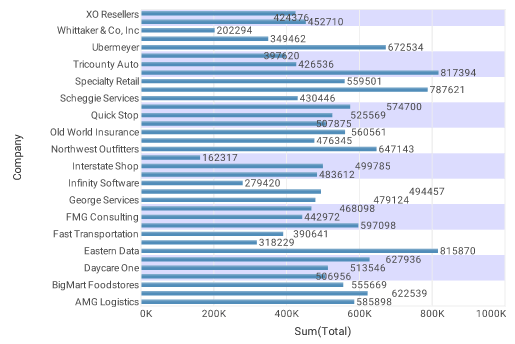

yBandColor 1

Either syntax below can be used in component script:

yBandSize          // unqualified
Chart1.yBandSize   // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
