bindingInfo.textureFrame

Modify Chart Element to apply a TextureFrame outside of the data binding.
bindingInfo.textures to set a static texture for a particular measure.
bindingInfo.setShapeField() for information on binding a shape field.

Specifies the aesthetic treatment (fill pattern) for the shape-coded data on a Bar Chart. A TextureFrame can texture-code chart elements by value, or simply specify a static texture style.

Type

TextureFrame

Example

Chart1.bindingInfo.setShapeField("Total",Chart.NUMBER);
Chart1.bindingInfo.textureFrame = new GridTextureFrame;

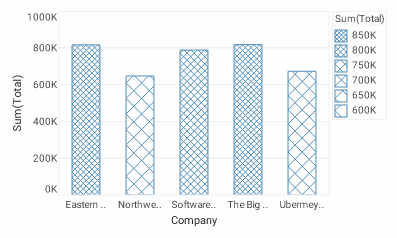

bindingInfoTextureFrame

Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
