PlotSpec.setBackground(value)

Specifies the background color for a Coordinate object (i.e., the plot area). The corresponding “getter” function is getBackground().

Parameter

value: A java.awt.Color object

Example

Chart Component Script

dataset = [["State", "Quantity"], ["NJ", 200], ["NY", 300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var sscale = new CategoricalScale("State");
var qscale = new LinearScale("Quantity");
var coord = new RectCoord(sscale,qscale);
var spec = new PlotSpec(); (2)
spec.setBackground(java.awt.Color(0xEEEEFF)); (3)
coord.setPlotSpec(spec); (4)
graph.setCoordinate(coord);
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the PlotSpec object.
3	Use `setBackground` to set the plot area color.
4	Use Coordinate.setPlotSpec(spec) to assign the `PlotSpec` to the `Coordinate`.

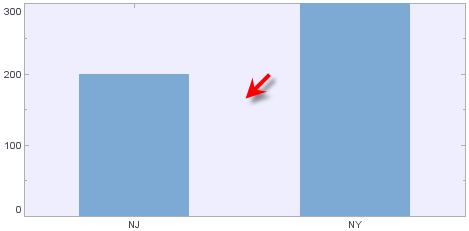

PlotSpecSetBackground 1

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

To change the property on a Chart that was previously created with the Chart Editor, use “getter” methods such as EGraph.getCoordinate() ① and Coordinate.getPlotSpec() ② to obtain a handle to the desired Coordinate and PlotSpec. For example:

var coord = graph.getCoordinate(); (1)
var spec = coord.getPlotSpec(); (2)
// Compact syntax: var spec = graph.getCoordinate().getPlotSpec();

spec.setBackground(java.awt.Color(0xEEEEFF));
