createCirclePackingGraph(colorDim, sizeCol, textCol, treeDims, [xdims, ydims])

The createCirclePackingGraph() function generates a Circle Packing Chart.

Parameters

colorDim

Name of dimension column whose values should be represented by color.

sizeCol

Name of measure column whose values should determine the circle size.

textCol

Name of dimension column that contains the group labels.

treeDims

Array of dimension column names from which to construct the circle hierarchy.

xdims

Array of dimensions (from among colorDim and treeDims) to be used to as the X-axis dimension.

ydims

Array of dimensions (from among colorDim and treeDims) to be used to as the Y-axis dimension.

Example

Chart Component Script
dataset = viewsheet['Query1']; (1)
graph = createCirclePackingGraph("_", "price", "state", ["state", "city", "product_name"]) (2)
1 See dataset for more information about setting the dataset.

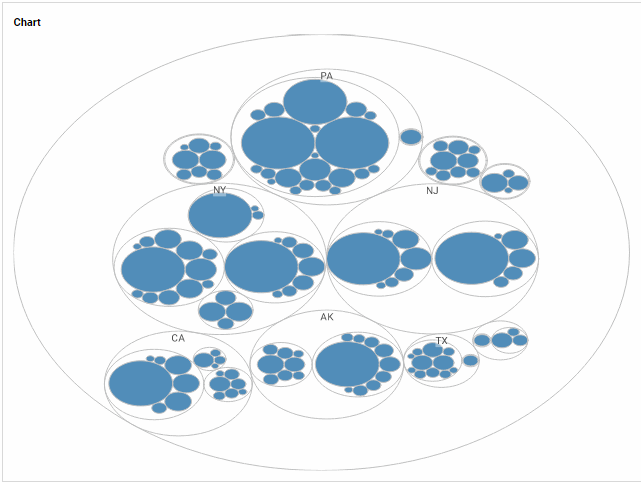

2 Create the circle packing chart.

ciclePacking1
Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
