bindingInfo.setColumnOrder(sort_field, header, method, [measure])

Sets the sorting order for row or column header. This is equivalent to setting the sorting for a header in the Crosstab Editor. The measure parameter is required only when a “by value” sort is requested.

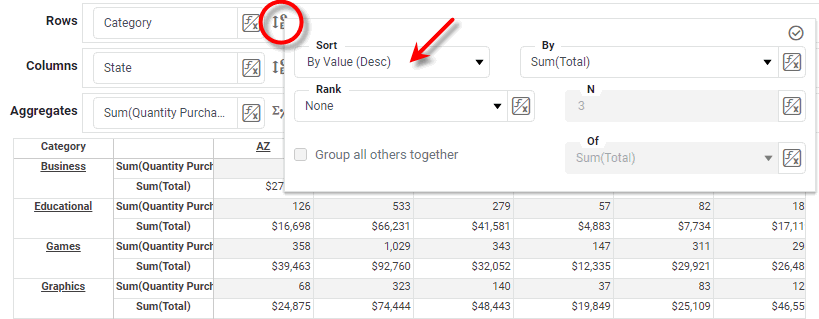

bindingInfoSetColumnOrder

Parameters

sort_field

String: Name of a column to sort

header

StyleConstant.ROW_HEADER or
StyleConstant.COLUMN_HEADER

method

Style Constant object: One of the following sort methods:

StyleConstant.SORT_NONE
StyleConstant.SORT_ASC
StyleConstant.SORT_DESC
StyleConstant.SORT_VALUE_ASC
StyleConstant.SORT_VALUE_DESC

measure

String: Formula for by-value sorting:

'Sum(column_name)'
'Average(column_name)'
'Max(column_name)'
'Min(column_name)'
'Count(column_name)'
'Distinct Count(column_name)'
'First(column_name1,column_name2)'
'Last(column_name1,column_name2)'
'Correlation(column_name1,column_name2)'
'Covariance(column_name1,column_name2)'
'Variance(column_name)'
'Median(column_name)'
'Mode(column_name)'
'Std Deviation(column_name)'
'Variance(Pop)(column_name)'
'Std Deviation(Pop)(column_name)'
'Weighted Average(column_name1,column_name2)'

Example

Crosstab1.query = 'Sales';
Crosstab1.bindingInfo.rowFields = ['Name'];
Crosstab1.bindingInfo.colFields = ['Region'];
Crosstab1.bindingInfo.measureFields = ['Total'];
Crosstab1.bindingInfo.setFormula('Total', StyleConstant.SUM_FORMULA);
Crosstab1.bindingInfo.showColumnTotal = true;
Crosstab1.bindingInfo.setColumnOrder('Name',StyleConstant.ROW_HEADER,StyleConstant.SORT_VALUE_DESC,'Sum(Total)');

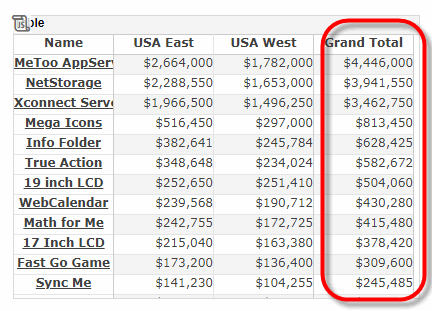

bindingInfoSetColumnOrder2

Either syntax below can be used in component script:

bindingInfo.setColumnOrder             // unqualified
Crosstab1.bindingInfo.setColumnOrder   // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
