axis.logarithmic

Sets logarithmic scaling for a numeric axis. The xAxis, yAxis, and y2Axis properties can be used as a shortcut.

Type

Boolean

Example

Chart1.axis['Sum(Product:Total)'].logarithmic = true;

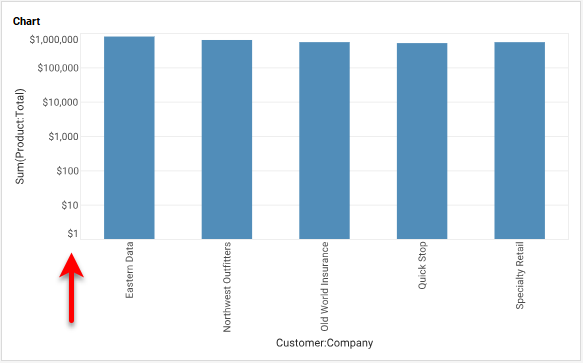

axisLogarithmic

Either syntax below can be used in component script:

axis['...'].logarithmic             // unqualified
Chart1.axis['...'].logarithmic      // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
