Coordinate.reflect(vert)

Reflect the coordinates about the vertical or horizontal axis.

Parameter

vert: true: reflect about horizontal axis
false: reflect about vertical axis

Example

Chart Component Script

dataset = [["State", "Quantity"], ["NJ", 200], ["NY", 300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var sscale = new CategoricalScale("State");
var qscale = new LinearScale("Quantity");
var coord = new RectCoord(sscale,qscale); (2)
coord.reflect(true); (3)
graph.setCoordinate(coord); (4)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the Coordinate object.
3	Use `reflect` to reflect about horizontal axis.
4	Use EGraph.setCoordinate(coord) to add the `Coordinate` to the Chart.

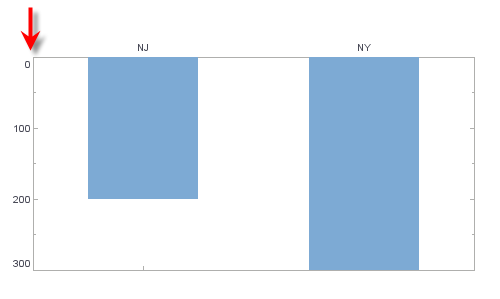

Coordinatereflect

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

To change the property on a Chart that was previously created with the Chart Editor, use EGraph.getCoordinate() ① to obtain a handle to the desired Coordinate object. For example:

var coord = graph.getCoordinate();(1)
coord.reflect(true);
