bindingInfo.setColumnOrder(col, order, [sortCol])

bindingInfo.getColumnOrder(col) to obtain existing binding information.

Specifies the sorting order for a specified dimension. To sort a dimension by measure value, set order to SORT_VALUE_ASC or SORT_VALUE_DESC, and use the sortCol string to supply the column and aggregation by which to sort.

Parameter

col

Name of field on which to apply sorting

order

The sort order, one of the following constants:

Chart.SORT_NONE
Chart.SORT_ASC        // ascending
Chart.SORT_DESC       // descending
Chart.SORT_VALUE_ASC  // ascending by value
Chart.SORT_VALUE_DESC // ascending by value

sortCol

String: Formula for sorting:

'Sum(column_name)'
'Average(column_name)'
'Max(column_name)'
'Min(column_name)'
'Count(column_name)'
'Distinct Count(column_name)'
'First(column_name1,column_name2)'
'Last(column_name1,column_name2)'
'Correlation(column_name1,column_name2)'
'Covariance(column_name1,column_name2)'
'Variance(column_name)'
'Median(column_name)'
'Mode(column_name)'
'Std Deviation(column_name)'
'Variance(Pop)(column_name)'
'Std Deviation(Pop)(column_name)'
'NthLargest NthLargest(column_name,n)'
'NthSmallest NthSmallest(column_name,n)'
'NthMostFrequent NthMostFrequent(column_name,n)'
'PthPercentile PthPercentile(column_name,n)'
'Weighted Average(column_name1,column_name2)'

Examples

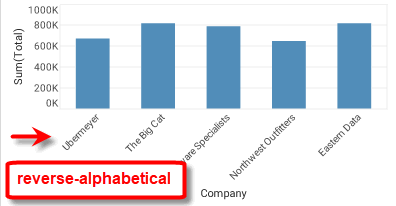

Chart1.bindingInfo.setColumnOrder('Company',Chart.SORT_DESC)

SetColumnOrder

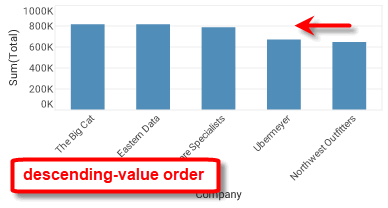

Chart1.bindingInfo.setColumnOrder('Company',Chart.SORT_VALUE_DESC,'Sum(Total)');

SetColumnOrder1

Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
