ShapeForm.setSize(value)

GraphForm

Specifies the size of the shape in pixels. The corresponding “getter” function is getSize().

Parameter

value: a java.awt.Dimension object

Example

Chart Component Script

dataset = [["State","Quantity"], ["NJ",200], ["NY",300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var form = new ShapeForm(); (2)
form.setValues(['NJ',100]);
form.setShape(GShape.FILLED_TRIANGLE);
form.setColor(java.awt.Color(0xff0000));
form.setSize(new java.awt.Dimension(50,50)); (3)
graph.addForm(form); (4)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the ShapeForm object.
3	Use `setSize()` to set the java.awt.Dimension object.
4	Use EGraph.addForm(form) to add the `GraphForm` to the Chart.

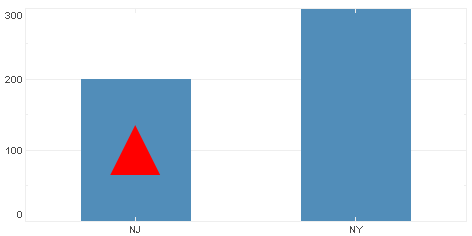

ShapeformSetSize

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
