LabelForm.setAlignmentX(value)

GraphForm

Specifies the horizontal alignment of the label with respect to the specified X location. Alignment is also applied to the label text. The corresponding “getter” function is getAlignmentX().

Parameter

value

One of the following alignments:

Chart.LEFT_ALIGNMENT
Chart.CENTER_ALIGNMENT
Chart.RIGHT_ALIGNMENT

Example

Chart Component Script

dataset = [["State","Quantity"], ["NJ",200], ["NY",300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var form1 = new LabelForm(); (2)
var form2 = new LabelForm(); (2)
form1.setLabel("label1");
form1.setPoint(new java.awt.Point(120, 100));
form2.setLabel("label2");
form2.setPoint(new java.awt.Point(120, 120));
form2.setAlignmentX(Chart.CENTER_ALIGNMENT); (3)
graph.addForm(form1); (4)
graph.addForm(form2); (4)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the LabelForm object.
3	Use `setAlignmentX()` to set the horizontal alignment.
4	Use EGraph.addForm(form) to add the `GraphForm` to the Chart.

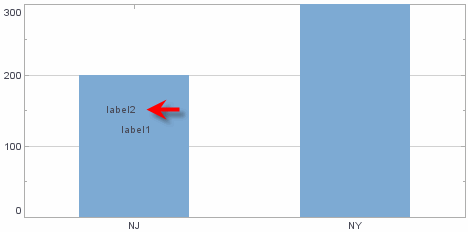

LabelFormSetXAlignment

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
