query

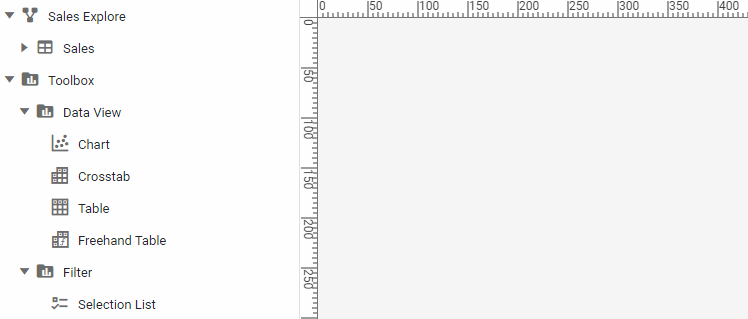

Specifies the data block to be used by the Crosstab component. The available data blocks appear at the top of the Toolbox panel in Visual Composer.

dataBlocks 1

See the Crosstab.bindingInfo properties for additional data binding features.

Type

String

Example

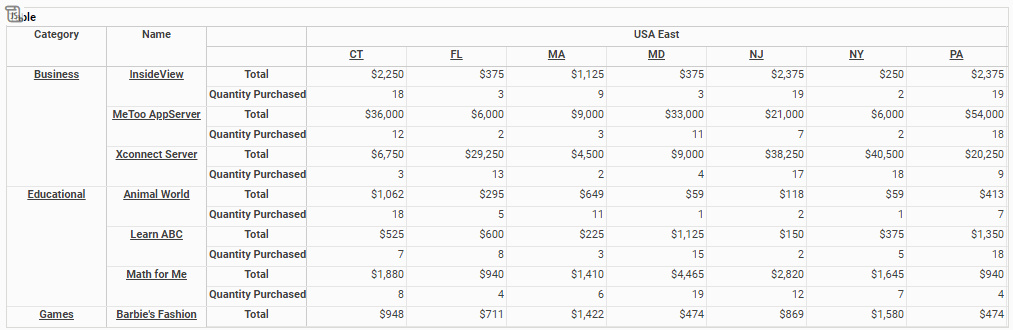

Crosstab1.query = 'Sales';
Crosstab1.bindingInfo.rowFields = ['Category','Name'];
Crosstab1.bindingInfo.colFields = ['Region','State'];
Crosstab1.bindingInfo.measureFields = ['Total','Quantity Purchased'];

bindingInfoCrosstabExp1

Either syntax below can be used in component script:

query             // unqualified
Crosstab1.query   // qualified

For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required.
