ProfileShapeFrame

The ProfileShapeFrame object contains the shape styles for multidimensional “mini-line chart” elements. To create a ProfileShapeFrame object, call the ProfileShapeFrame constructor.

var frame = new ProfileShapeFrame("m1","m2","m3");

You can pass the name of a field (e.g., e.g., ‘m1’, ‘m2’, ‘m3’) to the constructor, or specify this later using the inherited MultiShapeFrame.setFields(arr) property. The dimension values are mapped proportionately to the areas of the pie slices.

Example

Chart Component Script

dataset = [["State", "Quantity","m1","m2","m3"], ["NJ", 200,5,1,3], ["NY", 300,3,4,4]]; (1)
graph = new EGraph();
var frame = new ProfileShapeFrame(); (2)
var elem = new PointElement("State", "Quantity");
frame.setFields(["m1","m2","m3"]); (3)
elem.setShapeFrame(frame); (4)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the `ProfileShapeFrame` object.
3	Use the inherited MultiShapeFrame.setFields(arr) property to assign the fields to the `ProfileShapeFrame`.
4	Use GraphElement.setShapeFrame(frame) to add the `ShapeFrame` to the PointElement.

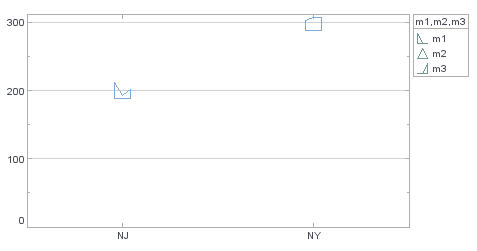

ProfileShapeFrame

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
