LinearScale.setIncrement(value)

Scale

Specifies the interval between values on the Scale. When the Scale is applied to an axis, this is the interval between values displayed on the axis. The corresponding “getter” function is getIncrement().

Parameter

value: Number specifying interval between values

Example

Chart Component Script

dataset = [["State", "Quantity"], ["NJ",200], ["NY",300]]; (1)
graph = new EGraph();
var qscale = new LinearScale("Quantity"); (2)
var elem = new IntervalElement("State", "Quantity");
qscale.setIncrement(15); (3)
graph.setScale("Quantity", qscale); (4)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the LinearScale object.
3	Use `setIncrement` to set the desired increment.
4	Use EGraph.setScale(field, scale) to assign the `Scale` to the Chart.

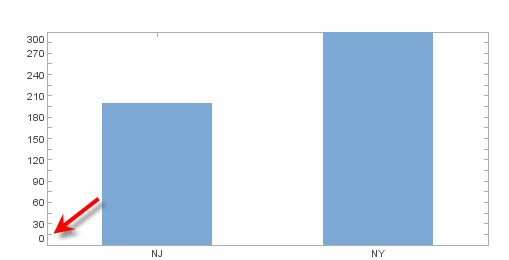

LinearScaleSetIncrement

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
