Scale.setAxisSpec(spec)

Specifies the axis properties for the Scale. The corresponding “getter” function is Scale.getAxisSpec().

Parameter

spec: an AxisSpec object

Example

Chart Component Script

dataset = [["State", "Quantity"], ["NJ",200], ["NY",300]]; (1)
graph = new EGraph();
var qscale = new LinearScale("Quantity"); (2)
var elem = new IntervalElement("State", "Quantity");
var spec = new AxisSpec(); (3)
spec.setLineColor(java.awt.Color(0xff0000));
qscale.setAxisSpec(spec); (4)
graph.setScale("Quantity", qscale); (5)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the Scale object.
3	Create the `AxisSpec` object.
4	Use `setAxisSpec` to assign the `AxisSpec` to the `Scale`.
5	Use EGraph.setScale(field, scale) to assign the `Scale` to the Chart.

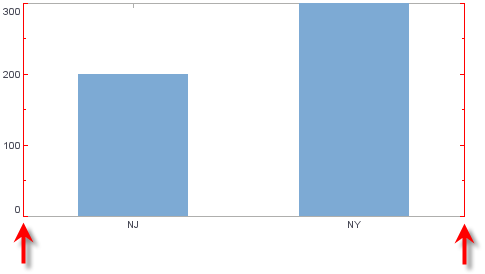

ScaleSetAxisSpec

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
