bindingInfo.shapeFrame

Modify Chart Element to apply a ShapeFrame outside of the data binding.
bindingInfo.shapes to set a static shape for a particular measure.
bindingInfo.setShapeField() for information on binding a shape field.

Specifies the aesthetic treatment for shape-coded data on a Point Chart. A ShapeFrame can shape-code chart elements by value, or simply specify a static shape style.

Type

ShapeFrame

Example

Chart1.bindingInfo.setShapeField("Total",Chart.NUMBER);
Chart1.bindingInfo.shapeFrame = new TriangleShapeFrame;

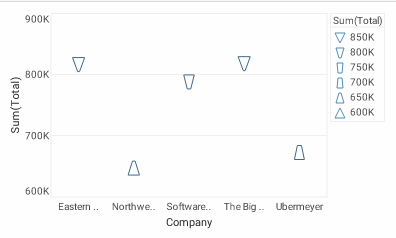

bindingInfoShapeFrame

Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
