RGBCubeColorFrame

The RGBCubeColorFrame object contains a continuous color frame that returns colors drawn from a range of the RGB color cube specified by two boundary colors, [rgb1,rgb2]. To create a RGBCubeColorFrame object, call the RGBCubeColorFrame constructor.

var frame = new RGBCubeColorFrame('Quantity',[rgb1,rgb2]);

You can pass the name of a field (e.g., ‘Quantity’) to the constructor, or specify this later using the inherited VisualFrame.setField(field) property. You can also assign a ColorFrame using the bindingInfo.colorFrame property in onRefresh script. See Example 2 below.

Example 1

Chart Component Script
dataset = [["State","Quantity"],["NJ",200],["NY",300],["PA",50],["CT",100]]; (1)
graph = new EGraph();
var elem = new IntervalElement("State", "Quantity");
var frame = new RGBCubeColorFrame([[0,0,0],[.5,1,1]]); (2)
frame.setField("Quantity");  (3)
elem.setColorFrame(frame); (4)
graph.addElement(elem);
1 See dataset to use a data block instead of an array literal.
2 Create the RGBCubeColorFrame object.
3 Use the inherited VisualFrame.setField(field) property to specify the field for the RGBCubeColorFrame.
4 Use GraphElement.setColorFrame(frame) to add the ColorFrame to the IntervalElement.

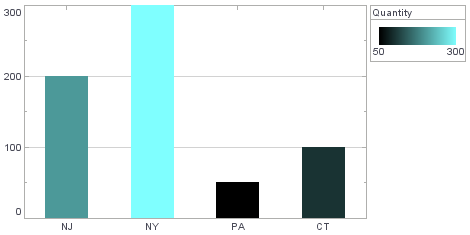

RGBCubeColorFrame2

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.

Example 2

This example illustrates how to use bindingInfo properties to control the ColorFrame.

  1. Bind a Bar Chart to the sample ‘All Sales’ Data Worksheet, with ‘Company’ (top 5) on the X-axis, and Sum(Total) on the Y-axis.

    The ‘All Sales’ Data Worksheet can be found in the Data Worksheet  Sample Queries folder. You may need to download the examples.zip file from GitHub into your environment. (This requires access to Enterprise Manager.) See Import and Export Assets for instructions on how to import.

  2. Add the following script in the onRefresh handler. (See Add Dashboard Script.)

    onRefresh Script
    Chart1.bindingInfo.setColorField("Total",Chart.NUMBER);
Chart1.bindingInfo.colorFrame = new RGBCubeColorFrame([[0,0,0],[.5,1,1]]);

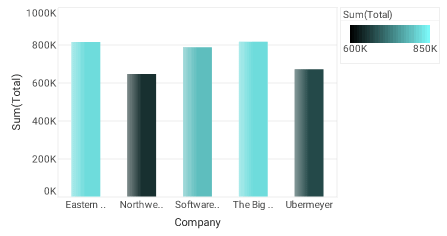

    RGBCubeColorFrame

    Dashboard script that modifies bindingInfo should generally be placed in the onRefresh handler. See Add Dashboard Script.
