rankPerGroup
When true, specifies that the top-N filter for a dimension (see bindingInfo.setTopN(col, N)) should be relative to the parent dimension in the dimension hierarchy.

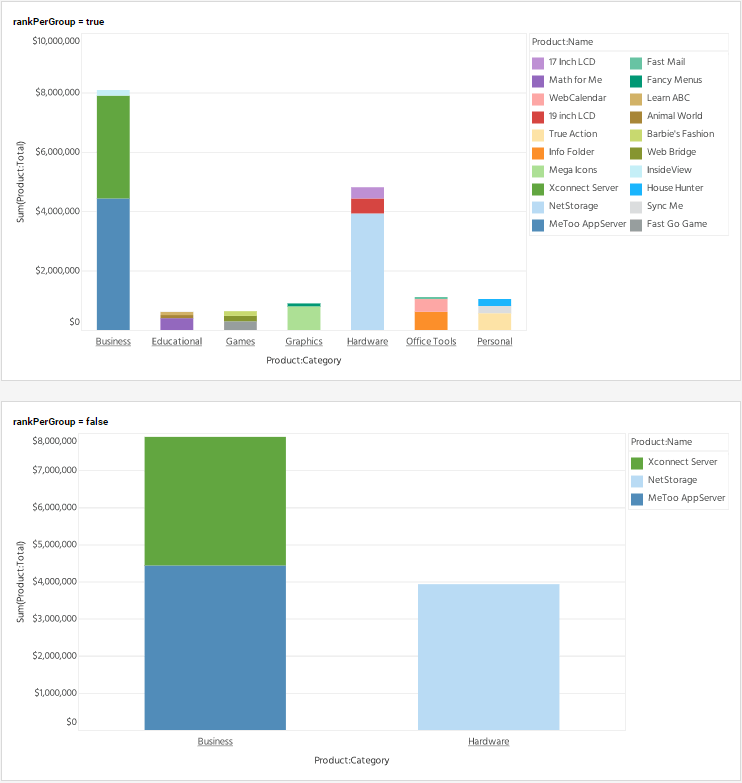

For example, if the chart ‘X’ dimension is ‘Product Category’ and the ‘Color’ dimension is ‘Product Name’, and you request “top 3” of ‘Product Name’, set rankPerGroup=true to make the filter relative to the parent ‘Product Category’ grouping (yielding the top 3 products for each category). Set to false (default) to filter ‘Product Name’ without respect to the ‘Product Category’ grouping (yielding the top 3 products across all categories).
Type
- Boolean
-
true: filter relative to the parent group
false: do not filter relative to the parent group
Example
Chart1.rankPerGroup = true;
Chart2.rankPerGroup = false;
|
Either syntax below can be used in component script: For onInit/onRefresh scripts, and for component and property scripts on other components, the second (qualified) form is required. |
