VineShapeFrame.setEndAngle(value)
The angle to which the maximum angle in the data is mapped. The corresponding “getter” function is getEndAngle().
| The scale maximum set by LinearScale.setMax(value) or TimeScale.setMax(value) also affects the displayed angle. |

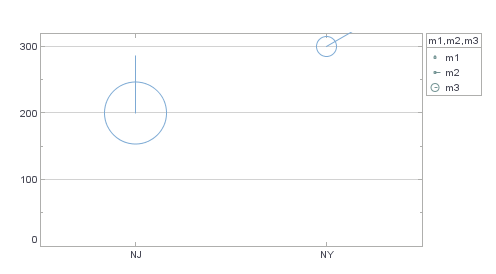

Example
Chart Component Script
dataset = [["State", "Quantity", "m1", "m2", "m3"],["NJ", 200,90,25,50],["NY", 300,30,15,15]]; (1)
graph = new EGraph();
var elem = new PointElement("State", "Quantity");
var frame = new VineShapeFrame(); (2)
var mscale = new LinearScale();
var rscale = new LinearScale();
mscale.setMin(0);
mscale.setMax(5);
rscale.setMin(0);
rscale.setMax(90);
frame.setScales([rscale, mscale, mscale]);
frame.setFields(["m1", "m2", "m3"]);
frame.setStartAngle(0);
frame.setEndAngle(90); (3)
elem.setShapeFrame(frame); (4)
graph.addElement(elem);| 1 | See dataset to use a data block instead of an array literal. |
| 2 | Create the VineShapeFrame object. |
| 3 | Use setEndAngle to set a 90° angle. |
| 4 | Use GraphElement.setShapeFrame(frame) to add the VineShapeFrame to the PointElement. |
Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
|
