FacetCoord.setInnerCoordinates(coord)

Coordinate

Specifies a RectCoord object, or array of RectCoord objects, to use for the inner coordinates of the facet graph. If an array is specified, each inner coordinate set is plotted independently. The innerCoordinates property can also be specified as an argument to the constructor. The corresponding “getter” function is getInnerCoordinates().

Parameter

coord: Array of RectCoord objects

Example

Chart Component Script

dataset = [["State", "City", "Product", "Quantity"],["NJ", "Piscataway", "P1", 200],
["NJ", "Edison", "P2", 100],["NY", "NYC", "P1", 300]]; (1)
graph = new EGraph();
var elem = new IntervalElement("City", "Quantity");
var state = new CategoricalScale("State");
var city = new CategoricalScale("City");
var product = new CategoricalScale("Product");
var quantity = new LinearScale("Quantity");
var inner = new RectCoord(city, quantity); (2)
var outer = new RectCoord(state, product); (2)
var coord = new FacetCoord(); (3)
coord.setInnerCoordinates([inner]); (4)
coord.setOuterCoordinate(outer);
graph.setCoordinate(coord); (5)
graph.addElement(elem);

1	See dataset to use a data block instead of an array literal.
2	Create the RectCoord objects.
3	Create a `FacetCoord` object.
4	Use `setInnerCoordinates` to assign the inner coordinates from the `RectCoord` to the `FacetCoord`.
5	Use EGraph.setCoordinate(coord) to add the `Coordinate` to the Chart.

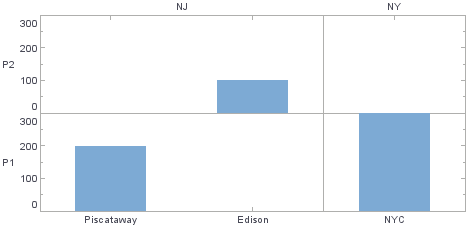

FacetCoordsetInnerCoord

Script that modifies the graph or dataset properties should be placed on the Chart component itself. See Add Component Script for more information. This script has access to the Chart data and Chart API methods. Scripted Charts are not good candidates for user-modification, so you should deselect ‘Enable Ad Hoc Editing’ in the Chart Properties dialog box.
