Radio Button/Check Box/Combo Box Properties

Dynamically Set Properties for information on how to use Form components.
Common Properties for information about ‘Properties’ settings that are the same for all components.
CheckBox, Radio Button, ComboBox in Dashboard Object Reference to set these properties dynamically using script.

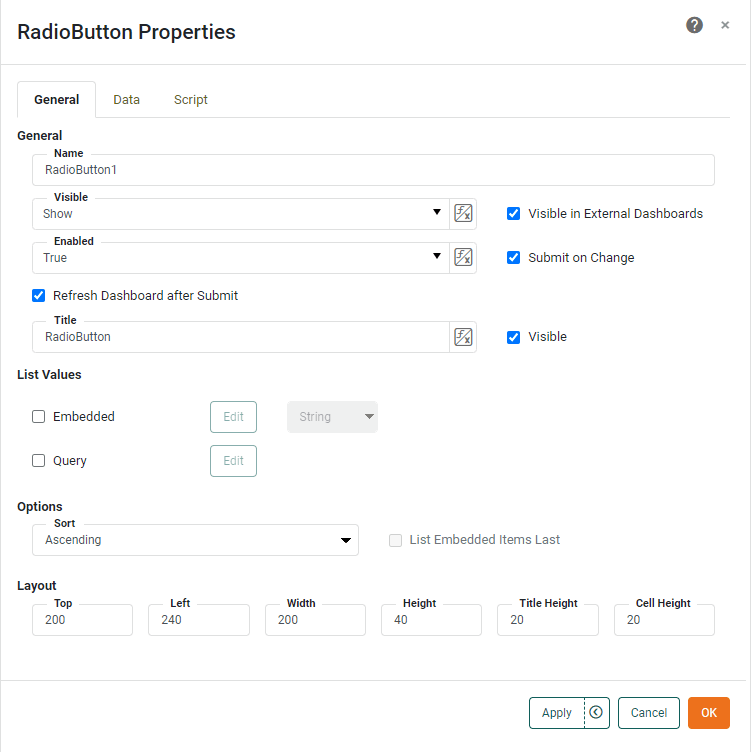

The ‘Properties’ panel for Radio Button, Check Box, or Combo Box provides General, Data, and Script tabs. The next sections discuss the Form-specific properties available under these tabs.

General Tab

The General tab in the ‘Properties’ panel provides the following unique properties for Radio Button, Check Box, and Combo Box.

Submit on Change

When enabled (default), submits the selected value immediately upon selection. Otherwise, a separate ‘Submit’ button is required.

Refresh Dashboard after Submit

Force the dashboard to refresh when the user submits a value from the Form component.

List Values

Specifies the method for populating control labels and values. You can select one or both of the following. If you specify both, the results are merged.

Embedded: Manually enter label-value pairs. For Date or TimeInstant type data, select the ‘Calendar’ option to allow users to select values using a calendar interface. Enter the ‘Minimum Date’ and ‘Maximum Date’ to restrict the range of the calendar. For TimeInstant data, select ‘Server Time Zone’ to utilize server time rather than client time.
Query: Populate from a query (data block). See Dynamically Set Properties for information on how to use these options.

Optional: To specify a default value, disable the ‘No Default’ option, and choose the desired default from the ‘Default Value’ menu. In the case where the values and labels differ, the menu displays items as label|value.

Sort

Specifies the sort order of the items, ‘Ascending’ or ‘Descending’. Enable ‘List Embedded Items Last’ to force items set via the ‘Embedded List Values’ dialog box to the end of the list (i.e., following any query-retrieved items).

Editable

Allows the user to enter an arbitrary string into the Combo Box (in addition to selecting from the list options).

Select First Item

For Check Box, selects the first item when the Dashboard loads (if no items are preselected).

Capture 062

Data Tab

The Data tab in the ‘Properties’ panel for Radio Button, Check Box, or Combo Box is the same as for Sliders and Spinners. See Slider/Spinner Properties.

Label Tab

The Label tab in the ‘Properties’ panel provides the following unique properties for Combo Box.

Show Label: Displays a label for the Combo Box when selected.
Label Text: The contents of the label. You can enter static text, or use Form components or script to set the contents by pressing the ‘Value Type’ button and selecting the ‘Variable’ or Expression’ option. See Dynamically Set Properties for more information.
Label Position: The position of the label relative to the component.
Gap: The gap in pixels between the component and the label.

Script Tab

See Script Tab for information about this common tab.
